Drum & Container Heaters





We supply a range of jacket heaters for a wide variety of plastic, metal and fibre containers including standard drums & IBCs. High quality insulation and direct contact with the drum ensures much higher efficiency than can be obtained with traditional band heaters



Standard heaters are suitable for use in non hazardous atmospheres. Thermosafe drum & process inductance heater is ATEX certified (Zones 1&2 - Ex II 2GD Eex e T3 170°C)





Construction





Scuff and water resistant polyurethane coated nylon outer surface fitted with adjustable retaining straps and quick release polyethylene clips



High thermal efficiency layer of insulation between outer cover and inner element carrier



Woven silicon insulated heating element





Efficiency





High quality insulation and direct contact with the drum - ensures much higher efficiency than can be obtained than with traditional band heaters. Advantages are:



Less heat loss to surrounding air

Cooler outer surface

Reduced electricity consumption





Options





Standard units 240V



Also available 110V / -5 to 40°C thermostat / 0-90°C thermostat

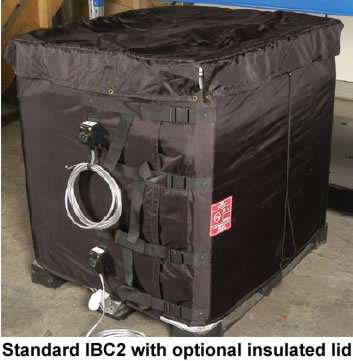

IBC2 as pictured right (2200W - 2 x 1100W - double heated jackets) typically used for pre-heating vegetable oil feedstock. Upper & lower jackets can be used independently e.g. if IBC is partially full, or lower power required for maintenace of IBC temperature. Supplied with 0 to 90°C thermostat as standard

To view our full range of heaters and pricing click on the icon to the right to go to the online shop



If you have any questions please contact us

450 Watt Drum Heater                  Thermosafe
